Simple Revit - Door Collection
€59.99
€44.99
Premium Parametric Door Collection of Revit families. The definitive solution for architects, interior designers, and BIM coordinators. Stop modeling doors from scratch! Professional-grade modular system with nested components — swap leaves, frames, casings, and hardware directly through parameters without ever editing a family. Ready-to-use schedules, full Level of Detail support, and an expandable template system for custom components. Comprehensive user's manual and demo project included.
Parametric Door System for Revit
A professional library of highly parametric door families and nested components for swing, sliding, bypass, and bifold operations. Built on a modular nested architecture that lets you mix and match leaves, frames, casings and hardware directly from project parameters — without ever editing a family.
🎯 Key Features
Complete Door Solution
- ▲ Parametric Door Families - Swing, Sliding, Bypass & Bifold types
- ▲ Nested Components - Leaves, Frames, Panels, Casings & Hardware
- ▲ Component Templates - Build your own Leaf, Frame, Panel, Casing & Hardware
- ▲ User's Manual - Detailed step-by-step guide
- ▲ Demo Project - Working examples with ready schedules
🔥 Smart Features
Advanced Functionality
- ▲ Nested Components Architecture - Swap leaves, frames, casings & hardware via Type parameters
- ▲ 2D & 3D Swing Lines - Inward/outward indication with reversible direction
- ▲ Independent Opening Control - Separate 2D and 3D opening states with safe ranges
- ▲ Parametric Dimensions - All widths, heights, clearances & gaps driven by Type/Instance parameters
📦 What's Included
Complete Package Contents:

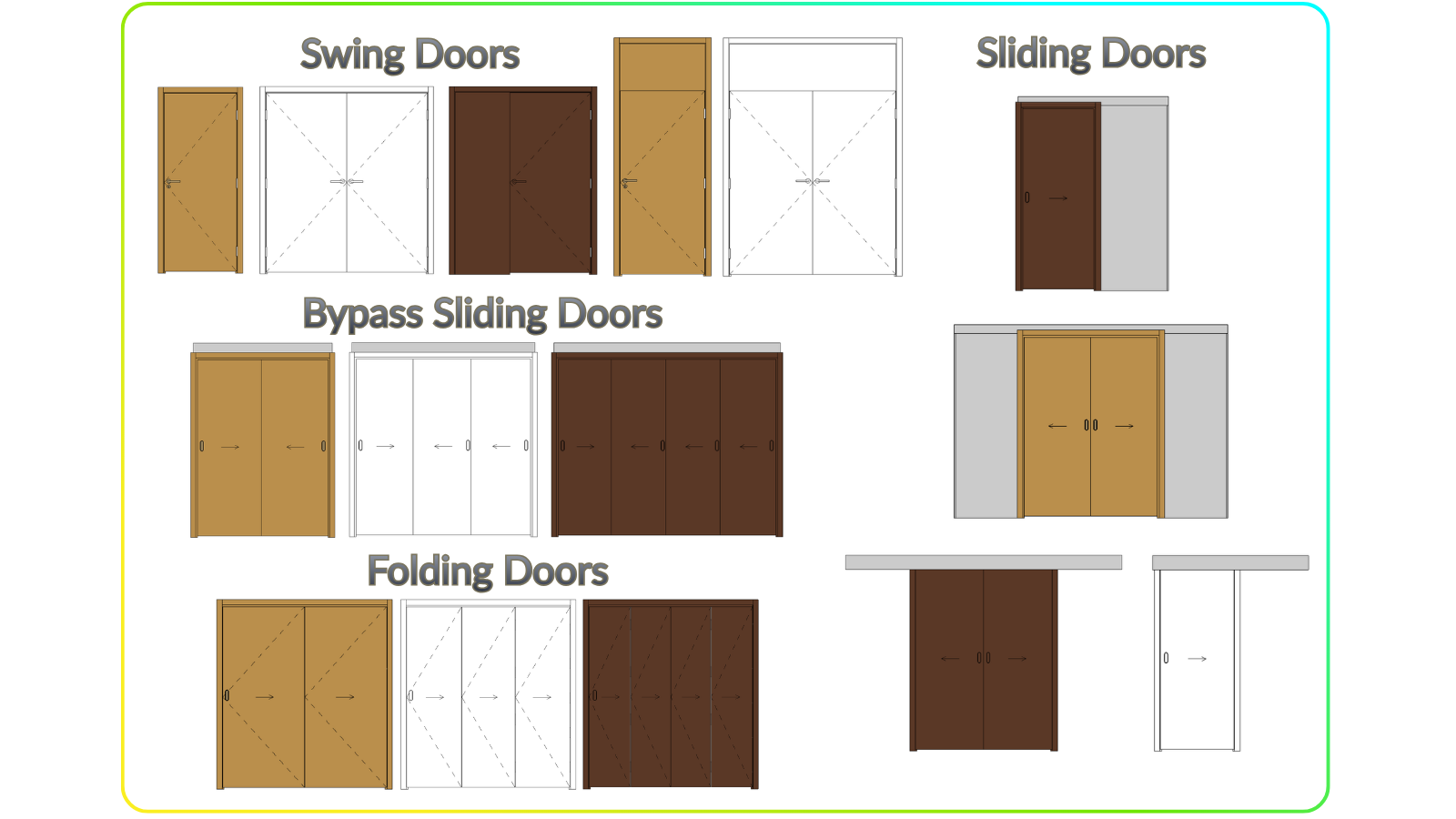

| Category | Types | Description |
|---|---|---|
| Swing Doors | 5 | Single, double & with fixed panels |
| Sliding Doors | 4 | Pocket & wall-mounted variations |
| Bypass Doors | 3 | Double, triple & quadruple leaves |
| Bifold Doors | 3 | Double, triple & quadruple folding |

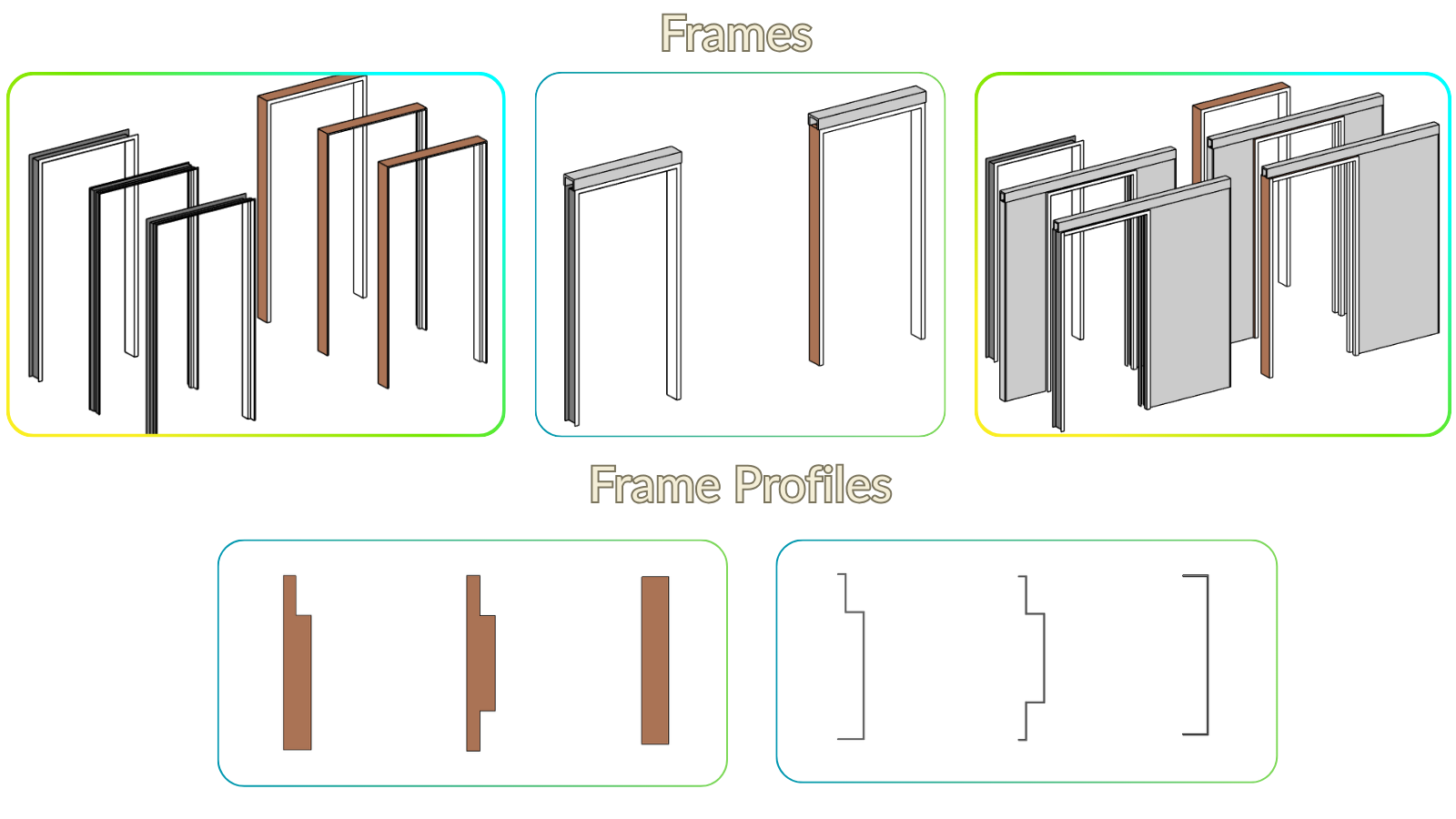

| Frames (FR) | 8 | Wood & metal profiles for all door types |

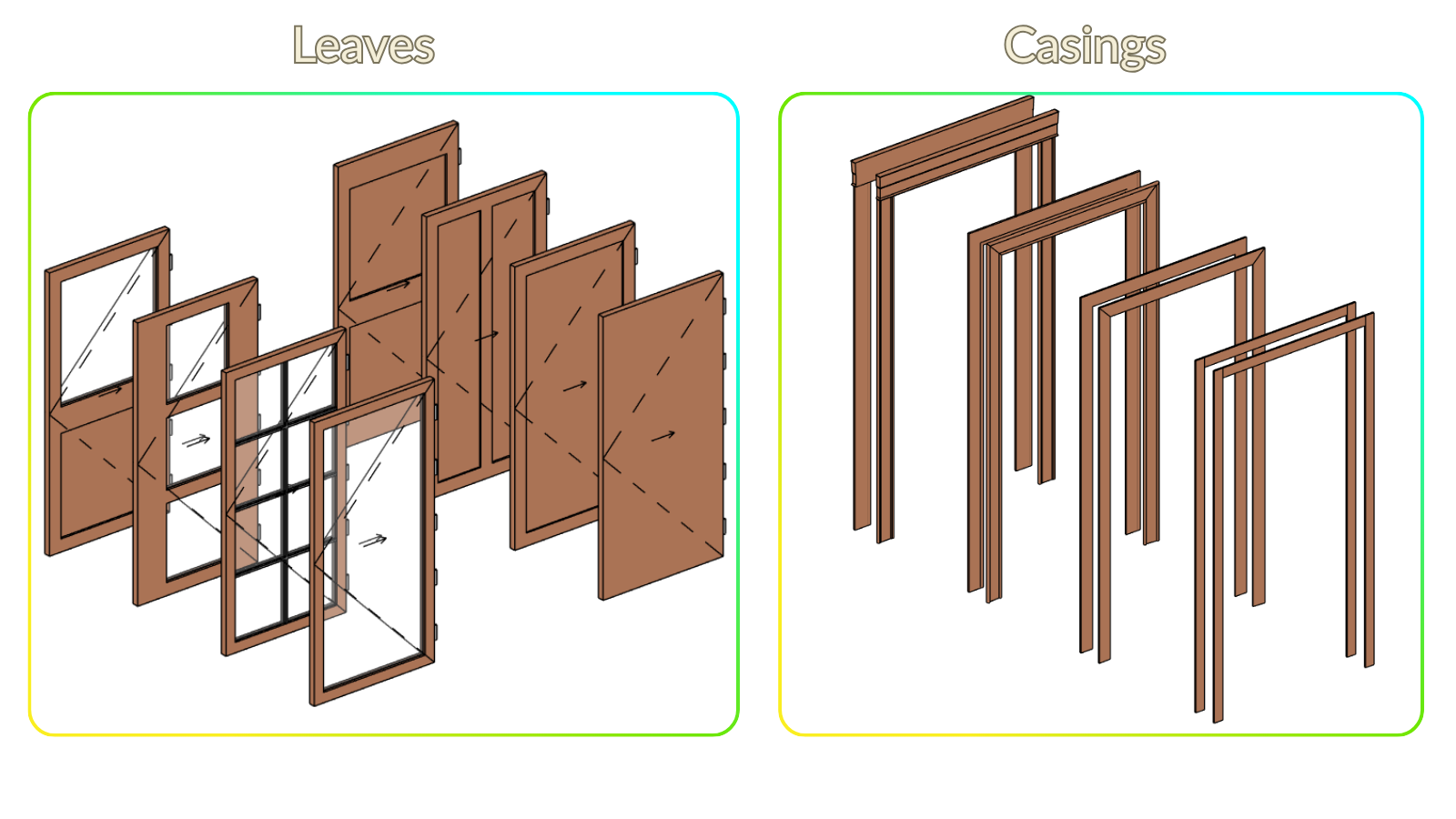

| Leaves (LF) | 8 | Solid & glazed variants |
| Casings (CS) | 4 | Interior door trim profiles |

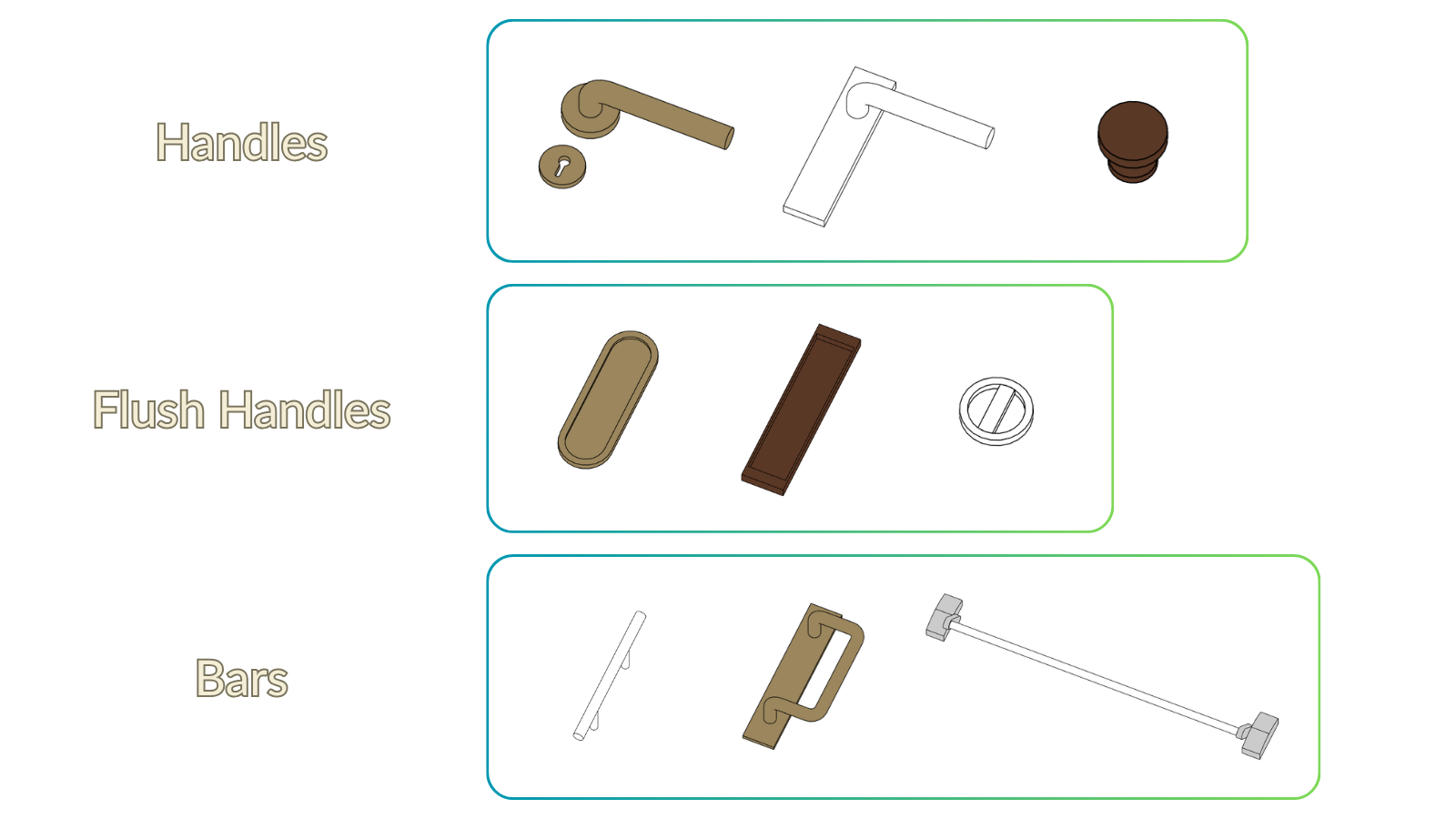

| Hardware (HW) | 9 | Handles, flush handles & panic bars |
| Panels (PN) | 2 | Solid & glazed for fixed elements |
| Total Families: | 46 | |
🧩 Modular Nested Architecture
The heart of the Door Collection
Each door is built from independent nested sub-families — leaves, frames, casings and hardware — that you swap directly from the project using parameters.
-
▲ Leaf Type (LF)
Switch between solid, glazed or custom leaves -
▲ Frame Type (FR)
Wood or metal profiles for any door operation -
▲ Casing Type (CS)
Trim profiles to match different interior styles -
▲ EXT / INT Hardware (HW)
Independent handles for exterior and interior side -
▲ Build Your Own
5 component templates (LF, FR, CS, HW, PN)
🎨 Smart Graphics & Detail Levels
Professional representation at any scale
Doors adapt to every view — clean 2D symbols on plans, accurate geometry in documentation, and full detail in close-up renders.
-
▲ 2D & 3D Swing Lines
Push / pull distinction with reversible direction -
▲ Independent 2D / 3D Opening
Different opening angles for plan and 3D views, with safe ranges -
▲ Coarse Detail
Simplified geometry — ideal for small-scale views and early design -
▲ Medium Detail
Accurate profiles, gaps, casings and hardware — documentation-ready -
▲ Fine Detail
Full detail with 3D hinges for close-up views and renders
💎 Why Choose Door Collection?
User's Manual
-
▲ Step-by-Step Guide
Detailed instructions for every door family with screenshots -
▲ Component Compatibility
Clear guide on which frames, leaves and hardware work with each door -
▲ Schedules Explained
How to use and adapt the pre-built schedules to your standards -
▲ Customization Instructions
How to build your own components using the provided templates
Key Benefits
-
▲ Save 80% Modeling Time
Pre-built parametric doors eliminate repetitive work -
▲ Endless Configurations
Mix any leaf, frame, casing or hardware combination on any door -
▲ BIM LOD 300-350 Ready
Professional-grade families meeting industry standards -
▲ Production Output Ready
Pre-mapped schedules, tags and shared parameters built in
⚠️ Important Note: Families are built in Revit 2024 and are not compatible with earlier versions. Please ensure you use Revit 2024+ before purchase.
